IDS-i10 and IDS-iSYS

For in vitro diagnostic use.

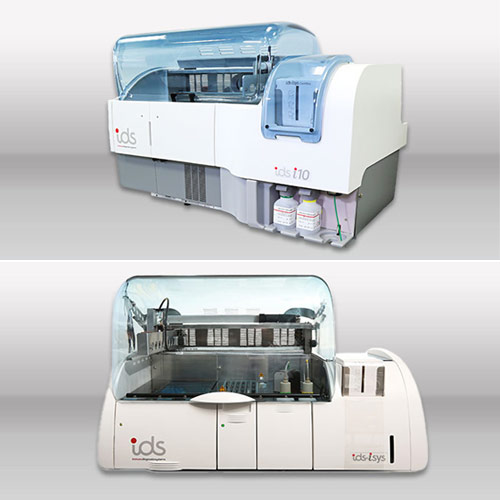

The random access instruments IDS-i10 and IDS-iSYS Multi-Discipline Automated System are compact solutions for automated processing of chemiluminescence immunoassays (ChLIA) for autoimmune, allergy and infection diagnostics as well as antigen detection. The possibility of loading the samples continuously – with the IDS-i10 also via connection to a lab track system – means that each patient sample can be processed as a single determination with minimal effort and short reaction times. In addition, the preferred processing of emergency (STAT) samples gives laboratories with different requirements and sample volumes unparalleled flexibility in their laboratory routine.

  • Random access instruments for batch, continuous and STAT loading
  • Minimal calibration effort owing to stored master curves
  • Connection to a laboratory track system possible for the IDS-i10
  • Autoimmune, allergy and infection parameters as well as antigen detection on one instrument
  • Short reaction times for fast and reliable results in just 25 minutes (depending on the test)
  • High throughput of up to 120 samples per hour
  • Convenient and reliable operation due to barcode recognition of samples and test and lot-specific information including stored standard curve

You can also find more information here: IDS-iSYS Multi-Discipline Automated System | IDS

Specifications

Sample material Serum, plasma, urine or saliva (assay dependent)
Number of loading positions 120 positions for samples, calibrators and controls (6 racks with 20 positions)
Number of parameters Up to 15 different immunoassay cartridges
Time to first result < 25 minutes (assay dependent)
Throughput Up to 120 tests/hour (assay dependent)
Sample tubes Primary tubes: 4.5 mL, 6 mL, 8.5 mL, 10 mL, secondary tubes: 5 mL, microvials: 500 μL, 2 mL
Luminometer Wavelengths from 300 to 500 nm.
Spectrophotometer Spectrophotometer with LED technology and 12 wavelength filters.
Pipetting volumes 4 μL-300 μL (assay-dependent)
Traceability Integrated reader in sample compartment as well as for reagent cartridge barcodes.
Online connection ASTM interface, bi-directional
Dimensions (WxDxH) 1050 mm x 750 mm x 700 mm
Weight 103 kg
